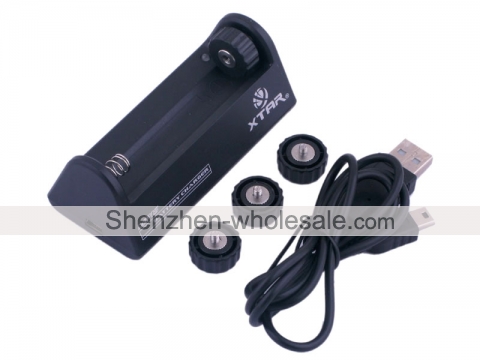

XTAR MP1S Lithium Battery Charger for 14650/17670/18650/18700/10440/14500/15270/16340/18350

Brand: XTAR

Model: MP1S

Color: Black

Operating ambient temperature : 0-40 ℃

Input voltage: 5V DC/500mA

Output voltage: DC4.2 ± 0.05V/500mA

apply to 14650/17670/18650/18700/10440/14500/15270/16340/18350

Accessories: a USB cable

Size (mm): 80 (L) x 40 (D) x 35 (D)

Packing size (mm): 220 (L) x 115 (W) x 50 (H)

Weight (g): 70/100




Product Features:

* The XTAR MP1S charger rechargeable! 4650/17670/18650/18700 3.7-volt lithium-ion battery, such as the use of the connector. 10440/14500 3.7V 5270/16340/18350 file-ion battery can be charged. The design of three-stage [trickle. Constant current, constant voltage) charging mode, real-time detection of the status of the battery charging. Control the battery according to the the detected battery status. Intelligent security charge.

* When the input voltage (AC adapter or car charger) is removed, the charger automatically enters a low current state, dropping the battery drain current is reduced to less than 4uA.

* When fully charged, the charger the battery will be continuously monitored. When the battery voltage drops below ov charging cycle begins again. Ensure that the battery is maintained in a fully charged state.

* Charger charge management chip interested 1C own temperature control, when the temperature is too high, the charging current is decreased, in order to ensure the normal operation of the chip.

* The charger circuit anti-reverse.



Note:

* This product is only rechargeable 3 7V file battery.

* This product is non-removable or modified
.
* This product is for indoor use only, avoid use in a wet environment.

* Do not short-circuit!
