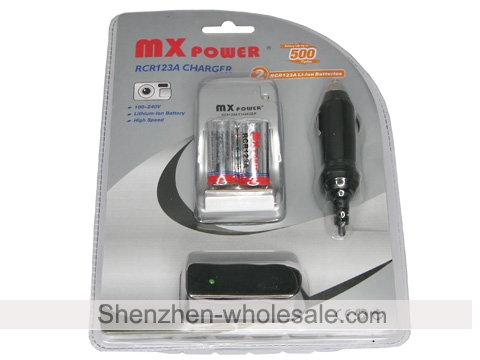

MX POWER RCR123A Battery Charger

Brand /model:MX POWER

Material:Plastic

Color:Grey

Gross weight(g):225

Battery: 2x RCR 123A

Packing Size(mm): 215X165X87

Accessory:2 RCR123A batteries

Model： PH-123A-3.0A

Input: 12V d.c. 360mA

Output: 4.5Vd.c. 360mA

LED Status

Red LED – Charge

Red LED turn to Green – Fully Charged

Green LED – No Battery be detected

The charger is suitable for 3.0V RCR123A Li-ion batteries only.

Attempt to charge other type of batteries may cause personal injury and damage to charger.

CHARACTERISTICS:

1.Charge 1 piece RCR123A Lithium-ion battery.

2.Charge with conatant current and constant voltage.

OPERATING INSTRUCTIONS:

1.Insert the battery into the battery compartment with correct direction of polarity.

2.Connect the adapter to the charger and switch on the power.

3.Green LED indicates the power is on if there is no battery in the battery compartment.

4.Red LED indicates the battery is charging properly.

5.Red LED turn to Green LED indicates the battery is fully charged.

CAUTION:

1.The charger is intended for use with Li-ion batteries only.Attempt to charge other type of batteries may cause personal injury and damage the charger.

2.Indoor use only.Do not expose the charger to rain or moisture.

3.Operating Temperature:0'C-35'C

4.Before use,read instruction.

5.Do not charge other brands of batteries.

6.If the charger becomes too hot,stop charging immediately.

7.If the charging battery becomes abnormal,such as becoming bloated,or emit smoke,stop charging immediately and leave.

8.Please do not put the charger near fire,heat,or open the charger.

9.Please keep the battery and charger dry and away from moisture.

IMPORTANT NOTES:

1.Charge time will be different from the capacity of the batteries.Please refer to the table of CHARGE TIME.

     Battery                    Battery Capacity                            Approximate Charge Time (hours)

      Model                           (mAh)                                                1 cell                           2cells

  RCRV123A                       650                                                    2.7                              5.4

2.It is normal that new battery can not be charged to its rated capacity when it is being used for the first time.

   To preform best capacity,new batteries have to be charged and discharged 3 to 5 cycles.

3.Batteries will self-discharge when not in use.It is recommended that you do not let battery sit idle for a long time before use.
