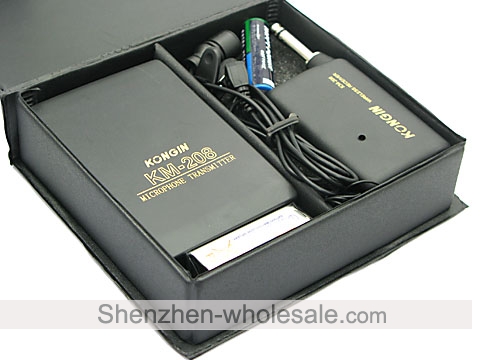

KONGIN Super Professional Microphone KM-208

Packing size:140(L)x125(W)x38(H)

Weight(g):245

HOW DO YOU ORERATE IT?

1.     Open the bottom cover of the transmitter,insert the battery with the correct polarity and close the bottom cover until it clicks shut.

2.     Insert the Mic,connector into the socket of transmitter.

3.     Open the battery cover  of the receiver, insert two batteries (size AAA) into the receiver with correct polarity and close the battery cover.

4.     Plug the receiver into the input sockey for microphone of amplifier, set both switch of transmitter and switch of receiver to ON position, then the pilot lamps and are on that indicates a good condition and it is ready for operation.

ATTENTIONS

1.     If acoustic quality and volume are abnormal or receiving distance is shortened,the batteries in transmitter and receiver should be replaced, if thereafter still not in normal operation,you can carefully trim the frequency by a djusting the screw in receiver with a screwdriver to bacome normal operation.

2.     If your microphone isn’t used for a long period, the battery should be taken out to avoid its deterioration and the damage of components.

3.     If two wireless microphone are used at the same time, you should use them with one red and another green lamp and can’t use them with the lamp of the same color.

4.     If the microphone is too close to the speaker or the volume of the amplifier is too loud shrill sound will occur and that may damage the amplifier or speaker, in that case, please keep microphone long distance from the speaker and turn down the volume of amplifier.

SPECIFICATIONS

1.     Modulation……………………………………………………………………FM

2.     Frequency response………………………………………………80 to 12500 Hz

3.     Output impedance………………………………………………600  obm

4.     Operating voltage………………………………………………9V DC for transmitter

                                                                                 3V DC for receiver

5. Effective distance………………………………………………20 m
