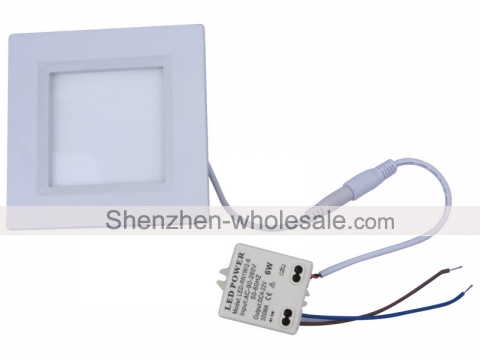

Hight Brightness 18W Square LED Panel Light Lamp

* Power: 18W

* Light Source: 18W LED

* Input Voltage: AC85-265V

* Working voltage: DC 4-22V

* Color temperature: 6000K

* Luminous flux: 1680 lm

* Color: White

* Life span: 50000hrs

* Dimension(mm): 200(L)x200(W)x35(H)

Application:

Hotels, meeting room, factory&office, residential, institution buildings, hospital, schools. Places where energy saving lighting and high color rendering index lighting are needed. Flange frame can be available.Installation precautions for LED panel light

Feature

* The simple dynamic control on brightness and color. It can fully satisfy the market requirement on high-quality indoor decoration atmosphere , which is one of the best advantage that LED owns at present in comparison to the traditional lighting sources.

* The external dimension is small. LED can fulfill the organic amalgamation with architectures, reaching the effect of only lighting without lamp. Meanwhile, it is convenient to reach varied gentle shape, which has brought a new thought for lighting design of indoor space.

* Long life-span. The LED with good heat elimination has the actual usage lifetime several times even dozens of times of the general used lighting sources. It has an extra advantage in the spot where it needs to be brightened for 24 hours and the maintenance and replacement are not convenient.

* It has no infrared or ultraviolet radiation in light beam. It is especially applicable to museum, art gallery, library, cosmetic shop, jewelry shop on display lighting.

* The LED panel light has strong irradiation direction. It has high usage rate of luminous flux, and small volume.

* Energy save and environment protection. In color lighting filed, LED has embodied its apparent advantage in energy save. In the filed of indoor white lighting, its energy save becomes obvious.

* No pollution, no radiation, no frequency flash. It is very applicable to modern lighting requirement, providing people with more scientific and healthy lighting environment.

* The LED panel light have low temperature on the surface. While the traditional lightings have very high surface temperature, it can efficiently avoid fire caused by the over-high temperature of lighting surface

* Panel light will surely become one of the mainstream in the field of indoor lighting as the development direction of modern indoor lighting products.

* Super flat light :Thanks to its own LGP technology ,ultra slim and excellent light uniformity.Extremely even and smooth lighting due to wider light emitting dimension

Note

* This product should be installed by trained electricians.

* Pleas make sure the transformer and the light panel disconnect with the AC main supply.

* The distance between the light and any flammable materials must not be less than 0.2m. The distance between the upper part of the installed light and the ceiling must not be less than 2.0cm.The light must not be installed into ceilings or walls that contain heat-insulating material. The main cable must not connect with the low voltage cable or the panel light.

* When connecting the wiring cables to the luminaries, the brown (or black) wire is the Live wire, connect it with the terminal marked "L". The blue wire is Naughty wire, connect it with the terminal marked "N".

* Use only the LED driver included, and do not connect the LED panel light to other loads.

* Please don't disassemble the LED panel light or the power supply or the drive system to avoid any danger to user or problems to the LED panel light.

* If there is unauthorized disassembly and maintenance, then the LED panel light and the transformer and the drive system will be out of warranty.
