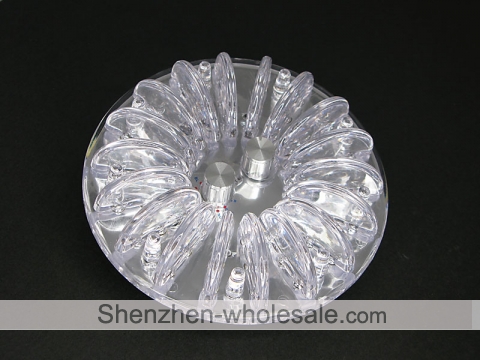

CARFU 9 LED Car Top Light AC-232

Size(mm):135(D)x47(H)

Weight(g): 200/250

Light color: colorful

Packing Size(mm):225(L) x200(W) x50(H)

Brief Introduction of Car Top

The car top light, which is made of LED light, emit soft refraction through the shape diaphanousacrylie slice. Based on the theory of three primary colors with special circuit layout, you can obtain light combinations in 8 different kinds of colors. Furthermore, the 9^th control function gives you a wonderful surpries as a result of the natural merging of different color lights with the additional ultraviolet LED. It makes you feel relaxed and comfortable when driving a car equipped with the top light. Power-save, environmental, safety and hard wering are the basis of the product that provides you the optimum choice for future automobile.

Installation of Car Top Light

1)    Circuit Connection:

The red wire is used for positive connection and the black for negative one and the white for the switching for car door light. Be sure you are aware of this before the installation.

2)    Installation:

See the illustration. Remove the top light from its package and fasten the metal slice on the top of your car with the screw. In the direction of the arrow,wedge the light point A into the metal slice

Point B you can put the rear cover round car top light, if the top hole is more bigger.(depend on the type of auto)

3)    Operation:

Turn R1 to ON. light on.

Turn R1 to OFF. Light off

Turn R1 to Door, door light is on.

The switch of R2 select the color you like.

Caution:

1)    The product is designed for the special 12V power. Do not use any other power adaptor.

2)    The product is designed for the installation in a car only.

3)    Do not take apart the product or alter the circuit layout anytime.

4)    Do not gaze foreard the bright point, when UV is shining please.

5)    1.5A fuse is provided for the product.

DC 12V

Power 0.8-5.5W

EC220mA
