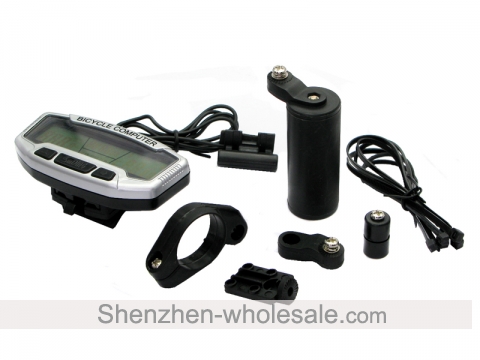

Bicycle Computer Wired SD-558A

Brand/model: SunDing SD-558A

Material: Plastic

Battery: 1xCR2032 (included)

Size(mm):90(L)x45(W)x15(H)

Color: Black

Weight(g): 125/160

Packing size(mm): 175(L)x155(W)x30(H)

 -SPD CURRENT SPEED
-ODO ODOMETER
-DST TRIP DISTANCE
-MXS MAXIMUM SPEED
-AVS AVERAGE SPEED
-TTM TOTAL TRIP TIME
-TM TRIP TIME -RTM RIDING ALL TIME
-CLK CLOCK12H/24H.
-SW STOPWATCH
-TEMPERATURE
-TM UP TRIP TIME UP
-TM DN TRIP TIME DOWN
-TRIP UP TRIP DISTANCE UP
-TRIP DN TRIP DISTANCE DOWN
-"+” COMPAPATOR
-SETTING SPEED SCALE km/h,m/h
-MAINTENANCE ALERT
-CARE REMINDER
-OVER-SPEED REMINDER
-SETTING TYRE CIRCUMFERENCE
-SETTING THE LAST VALUE OF ODOMETER / ODO
-SETTING THE LAST VALUE OF TOTAL TIME
-FREEZE FRAME MEMORY
-LCD BACKLIGHT
-LOW BATTERY INDICATOR
- AUTO ON/OFF

Battery Installation

Remove the battery cover from the bottom of the computer, using a flat blade screwdriver. Install a AG13 battery with the positive (+) pole facing the battery cover and replace the cover. Should the LCD show irregular figures, take out the battery and install again.

Speedometer Sensor

The speedometer sensor bracket attaches to the left fork blade, using rubber shims to adjust to the diameter of the fork.

Position the sensor and magnet, making sure that the arc of the magnet intersects the alignment mark on the sensor with 1 mm clearance.

The magnet attaches to the front wheel spoke with the screws provided.

Mounting Computer Body

Attach the mounting shoe to the handlebar using the back splint provided. To check for proper speed function and sensor alignment, spin the front wheel with computer in speed mode. Adjust the position of sensor and magnet when there is no or weak reactivity.

Detail introduction please see the instruction in the package box.
