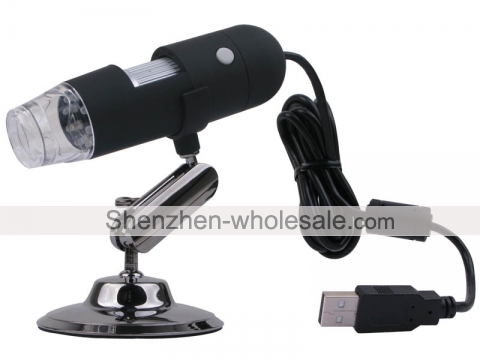

20X-200X 2.0MP USB Microscope Digital Camera

1.Image sensor : 2 Mega Pixels (interpolated to 5M)

2.Still capture resolution :

                                2560x2048 (5M), 2000x1600, 1600x1280 (2M),

                               1280x1024, 1024x960, 1024x768, 800x600,

                                640x480, 352x288, 320x240, 160x120

3.Video capture resolution:

                                2560x2048 (5M), 2000x1600, 1600x1280 (2M),

                                1280x1024, 1024x960, 1024x768, 800x600,

                                 640x480, 352x288, 320x240, 160x120

4.Focus Range : Manual focus from 10mm to 500mm

5.Frame Rate: Max 30f/s under 600 Lus Brightness

6.Magnification Ratio :  20x to 200x

7.Video format : AVI

8.Photo format : JPEG or BMP

9.Light source : 8 LED (adjustable by control wheel)

10.PC interface: USB2.0

11.Power source: 5V DC from USB port

12.Operation system: Windows2000/XP/Vista/Win7/ Mac

13.OSD language English, German, Spanish, Korean, French, Russian

14.Bundle software MicroCapture with measurement & calibration function

15.Size: 110mm (L) x 33mm (R)

16.Packing Size(mm):212(L)x145(W)x62(H)

17.Weight(g):200/330

18.Package Contents

1×Digital Microscope with USB cable

1×Fixed stand

1×CD driver

1×User manual

Install the software:

Connecting the Microscope to Computer!! The microscope must be

connected to the computer before installing the software.

Insert the driver CD into CD-ROM Drive and this will automatically display the

following interface:

1. Install the driver by clicking install Microscope Driver

The Install Shield Wizard will walk you through the whole process. Click on

the “Next” button to continue.

2. Install the MicroCapture software

Click MicroCapture software and then reboot the system when asked.

3. You can also browse the User’s manual in PDF format and the CD contents

by choosing the corresponding menus.
